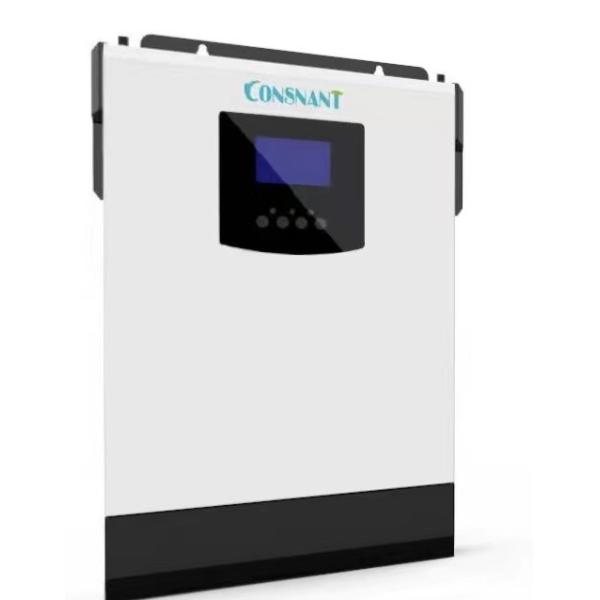

Wall Mounted 5000VA Hybrid Solar Inverter IP65 Home Energy Storage System

Product Categories

Shenzhen Consnant Technology Co., Ltd.

Contact Now

Name: Wall Mounted 5000VA Hybrid Solar Inverter IP65 Home Energy Storage System
Brand: CONSNANT
Price: 1 USD

Brand Name : CONSNANT

Model Number : CNS110

Certification : CE,ISO9001,ISO14001

Place of Origin : Shenzhen,China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 pieces per month

Delivery Time : 20 days after receiving 30% deposit

Packaging Details : Each unit in one carton

Battery Type : Lead-acid battery or LiFePO4

Battery voltage range (V) : 42V~58V

Maximum charging current (A) : 120A

Maximum discharge current (A) : 120A

Rated output power (VA) : 5000VA

Peak output power (VA) : 6000VA

Contact Now

Home Energy Storage System

FLEXIBLE CONFIGURATION

Wide input voltage range.

Compatible with a variety of battery connections such as lead-acid and lithium-ion batteries.

Support up to 15 parallel machines.

SAFE AND RELIABLE

Battery reverse connection and leakage current protection.

Support anti-backflflow function

Multiple overvoltage, overcurrent and short circuit protection.

STYLISH AND ELEGANT

Stylish appearance, light and simple.

Natural cooling, quiet.

IP65 protection grade, wall-mounted design, save space.

Model	SC HF 3500-24	SC HF 5500-48
Rated power	3500VA/3500W	5500VA/5500W
Input
Voltage	230VAC
Voltage range	170-280VAC(uitable for personal computers) 90-280VAC(Suitable for household appliances)

Frequency range	50Hz/60Hz(Automatic adaptation)
Output
Grid voltage regulation (battery mode)	230VAC±5%
Surge power	6000VA	11000VA
Efficiency	>93.6%
Switch time	10ms
Waveform	Pure sine wave
Battery
Battery voltage	24VDC	48VDC
Float charge voltage	27VDC	54VDC
Overcharge protection	33VDC	63VDC
PV Charge &AC Charge
PV maximum open circuit voltage	500VDC	500VDC
PV maximum power	5500W	5500W
Maximum grid charge current	15A	25A
MPPT operating voltage range	120VDC-450VDC	120VDC-450VDC
PV maximum charge current	25A	25A
Physical properties
Size	300110462
Net weight (kg)	9	10
Communication interface	RS232
Environment
Humidity	Relative humidity (non-condensing)
Operating temperature	-10℃-50℃
Storage temperature	-15℃-60℃

Wall Mounted 5000VA Hybrid Solar Inverter IP65 Home Energy Storage System
